General Description
element using evaporated InSb film. It performs
effectively in low magnetic fields due to the high
sensitivity. The input and output resistance values are
suitable for transistor circuits. The device is available in SOT343 package is
rated over the -40°C to 125°C. The all packages are
RoHS and Green compliant.
Features
High sensitivity InSb Hall Element
Shipped in Package tape Real
Differential Analog output
Output Hall Voltage (mV)
D: 196mV to 236mV (DD)
E: 228mV to 274mV (DE)
F: 266mV to 320mV (DF)
G: 310mV to 370mV (DG)
H: 360mV to 430mV (DH)
RoHS & Green Compliant

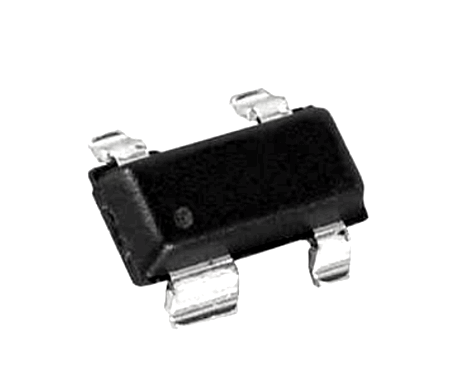

Thin 4pin SMT SOT343 Packages
-40℃ to +125 ℃ Temperature Range
Applications
Brushless DC Motor
Other small precision motors
DVD, CD-ROM, floppy disk drive
Non-contacting, rotation sensors, current
sensors
Magnetic flux sensors other than those above
