AS1826
Dual Outputs for both S and N-pole Low Power Hall-Effect Sensor IC
General Description
The total power consumption of AS1826 is typically less than 1.7uA at 1.8V power supply. AS1826 is designed to respond to alternating North and South poles. White the magnetic flux density (B) is larger than operate point (BOP), the output will be turned on (low), the output is held until the magnetic flux density (B) is lower than release point (BRP), then turn off (high).
Features
● Input Voltage Range : 1.6V to 5.0V
● Micro-power consumption ideal for battery power applications
● Low Power CMOS process technology
● Chopper stabilization amplifier stage
● Magnetic Sensitivity (typical) BOPS=40Gauss, BRPS=25Gauss BOPN= -40Gauss, BRPN= -25Gauss
● Good RF noise immunity
● No need pull-up resistor
● Small Solution Size
● RoHS & Green Compliant

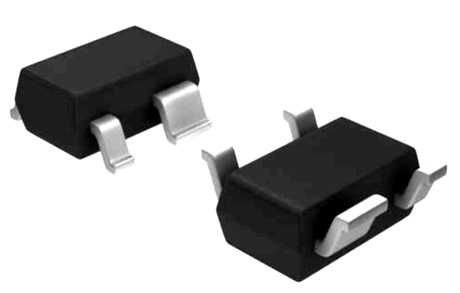

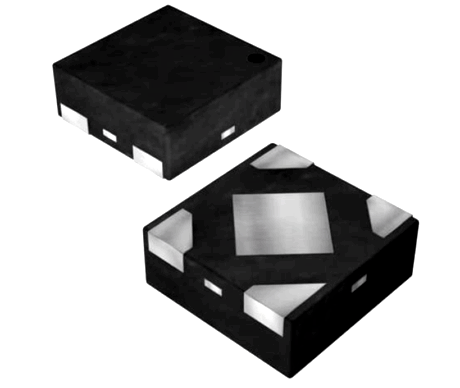

● DFN1014-4L & SOT343 Packages
Applications
● Cover switch in clam-shell cellular phones
● Cover switch in Notebook, PC/PAD
● Contact-less switch in consumer products
● Solid State Switch
● Magnet proximity sensor for reed switch replacement in low duty cycle applications
● DV, DSC, and White Goods
